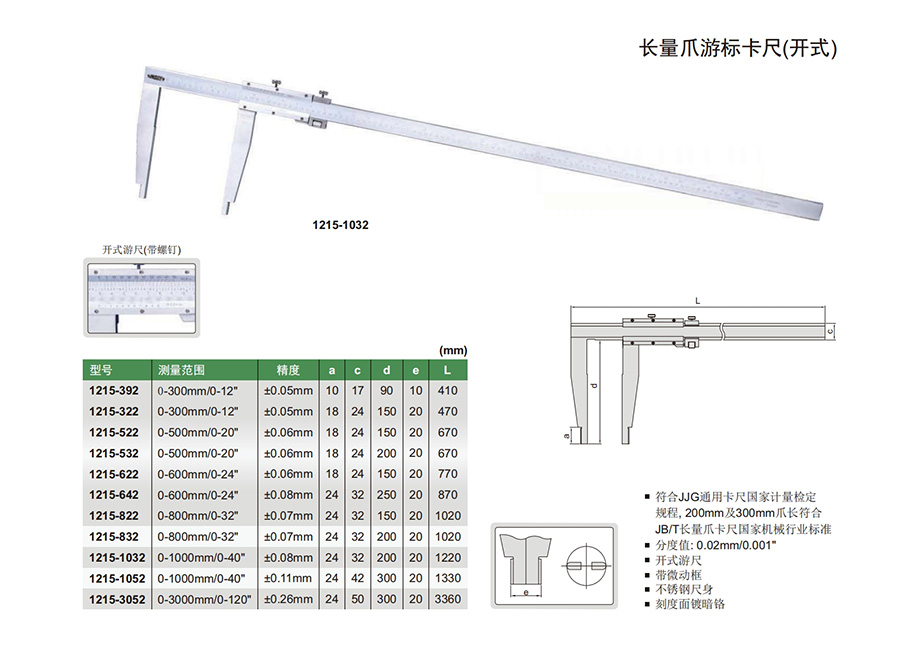

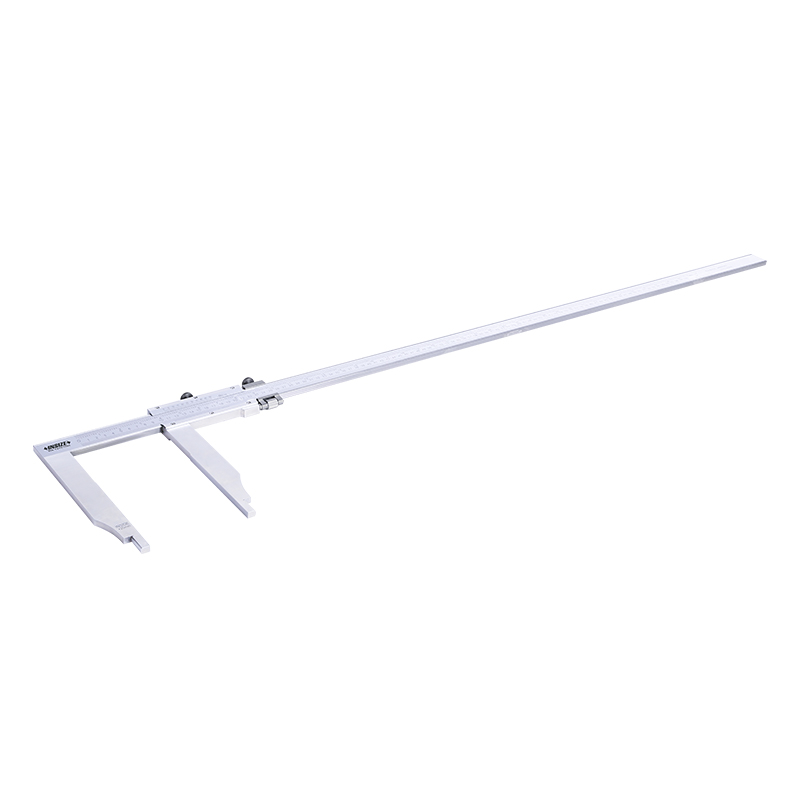

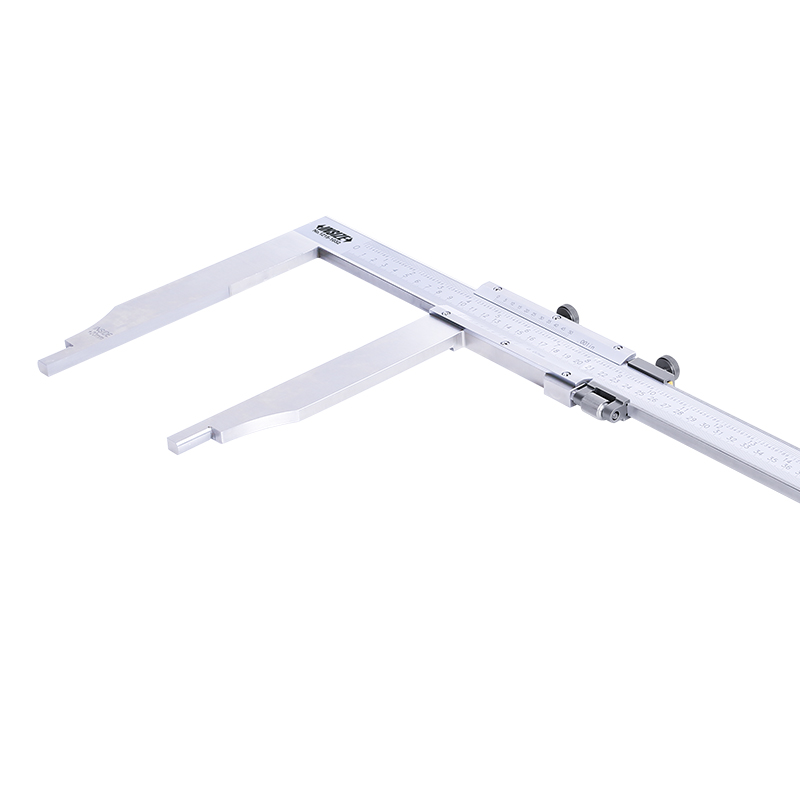

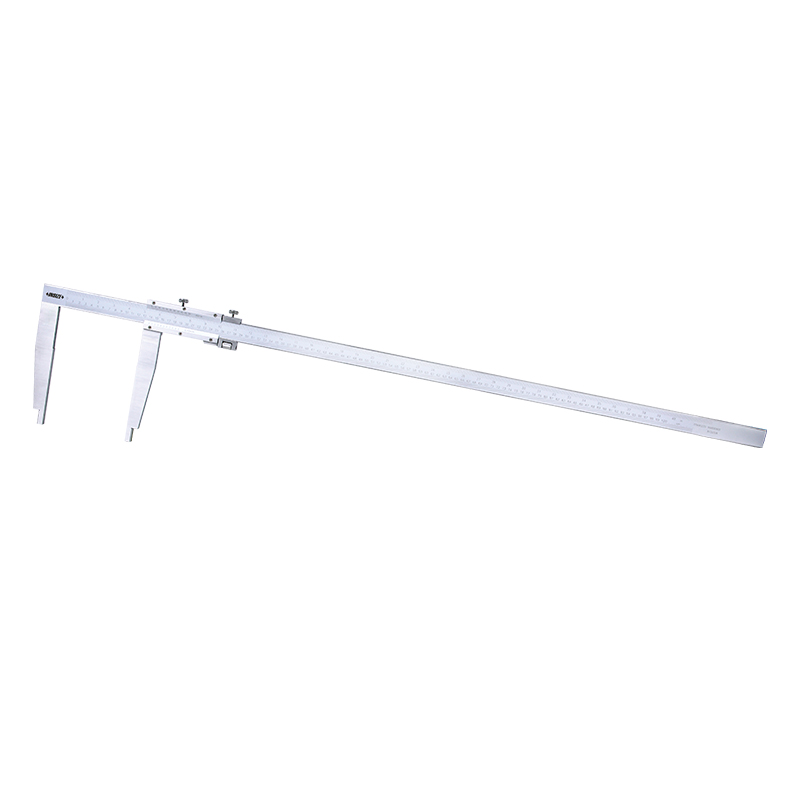

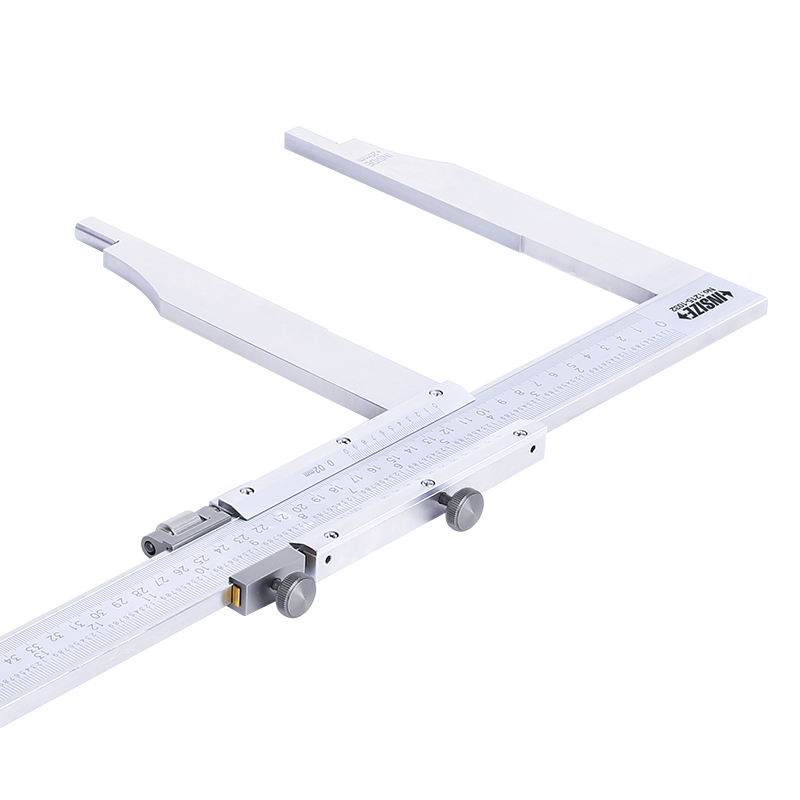

长量爪游标卡尺(开式)
型号: 1215
符合JJG通用卡尺国家计量检定规程, 200mm及300mm爪长符合JB/T长量爪卡尺国家机械行业标准
分度值: 0.02mm/0.001"
开式游尺
带微动框
不锈钢尺身
刻度面镀暗铬
| 型号 | 测量范围 | 精度 | 分度值 |
|---|---|---|---|
| 1215-392 | 0-300mm/0-12" | ±0.05mm | 0.02mm/0.001" |
| 1215-322 | 0-300mm/0-12" | ±0.05mm | 0.02mm/0.001" |
| 1215-522 | 0-500mm/0-20" | ±0.06mm | 0.02mm/0.001" |
| 1215-532 | 0-500mm/0-20" | ±0.06mm | 0.02mm/0.001" |
| 1215-622 | 0-600mm/0-24" | ±0.06mm | 0.02mm/0.001" |
| 1215-642 | 0-600mm/0-24" | ±0.08mm | 0.02mm/0.001" |
| 1215-822 | 0-800mm/0-32" | ±0.07mm | 0.02mm/0.001" |
| 1215-832 | 0-800mm/0-32" | ±0.07mm | 0.02mm/0.001" |
| 1215-1032 | 0-1000mm/0-40" | ±0.08mm | 0.02mm/0.001" |
| 1215-1052 | 0-1000mm/0-40" | ±0.11mm | 0.02mm/0.001" |
| 1215-3052 | 0-3000mm/0-120" | ±0.26mm | 0.02mm/0.001" |
