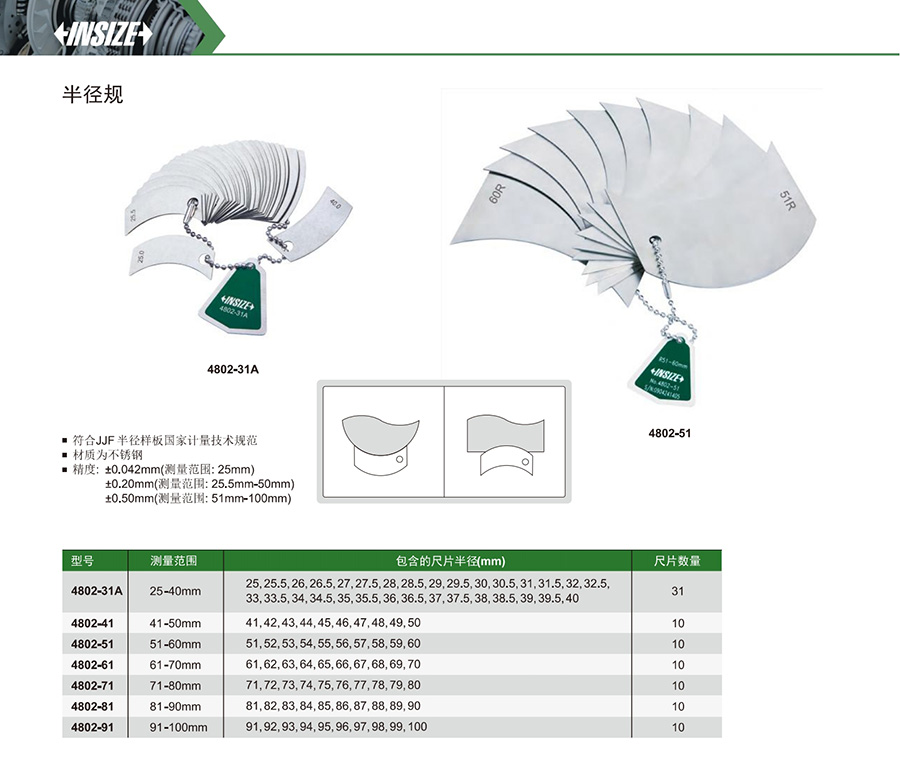

半径规
型号: 4802
符合JJF半径样板国家计量技术规范
材质为不锈钢
精度: ±0.042mm(测量范围: 25mm), ±0.20mm(测量范围: 25.5mm-50mm), ±0.50mm(测量范围:51mm-100mm)
| 型号 | 测量范围 | 包含叶片半径（mm） |
|---|---|---|

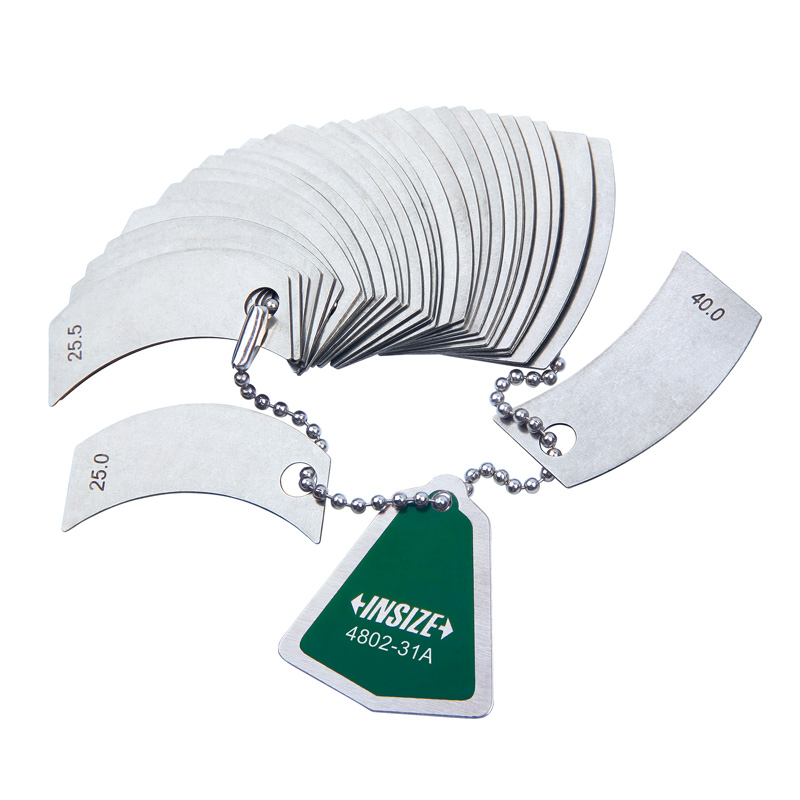

| 4802-31A | 25-40mm | 25, 25.5, 26, 26.5, 27, 27.5, 28, 28.5, 29, 29.5, 30, 30.5, 31, 31.5, 32, 32.5, 33, 33.5, 34, 34.5, 35, 35.5, 36, 36.5, 37, 37.5, 38, 38.5, 39, 39.5, 40 |
| 4802-41 | 41-50mm | 41, 42, 43, 44, 45, 46, 47, 48, 49, 50 |

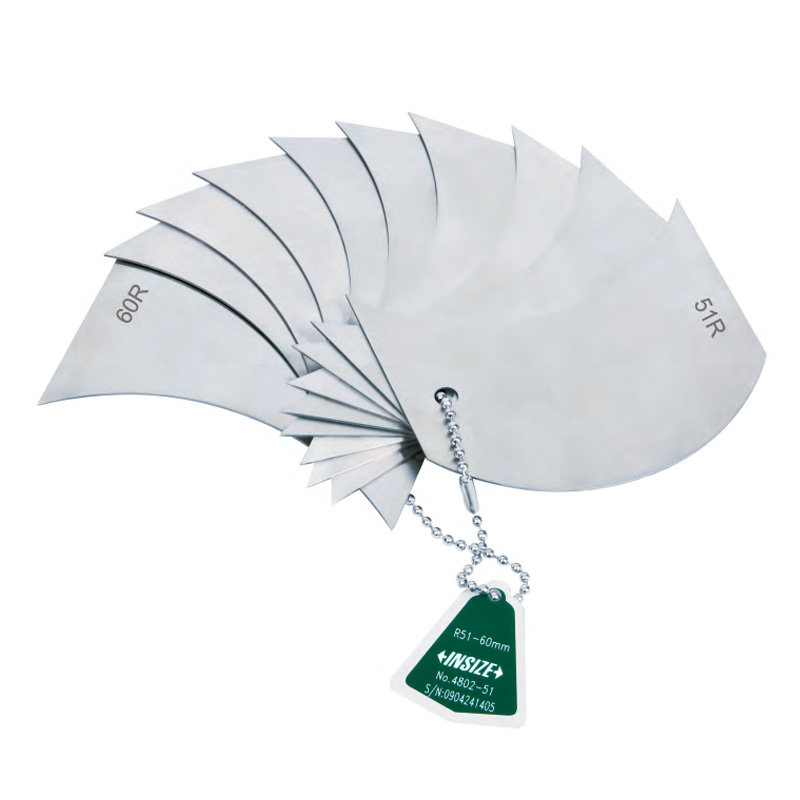

| 4802-51 | 51-60mm | 51, 52, 53, 54, 55, 56, 57, 58, 59, 60 |
| 4802-61 | 61-70mm | 61, 62, 63, 64, 65, 66, 67, 68, 69, 70 |
| 4802-71 | 71-80mm | 71, 72, 73, 74, 75, 76, 77, 78, 79, 80 |
| 4802-81 | 81-90mm | 81, 82, 83, 84, 85, 86, 87, 88, 89, 90 |
| 4802-91 | 91-100mm | 91, 92, 93, 94, 95, 96, 97, 98, 99, 100 |
