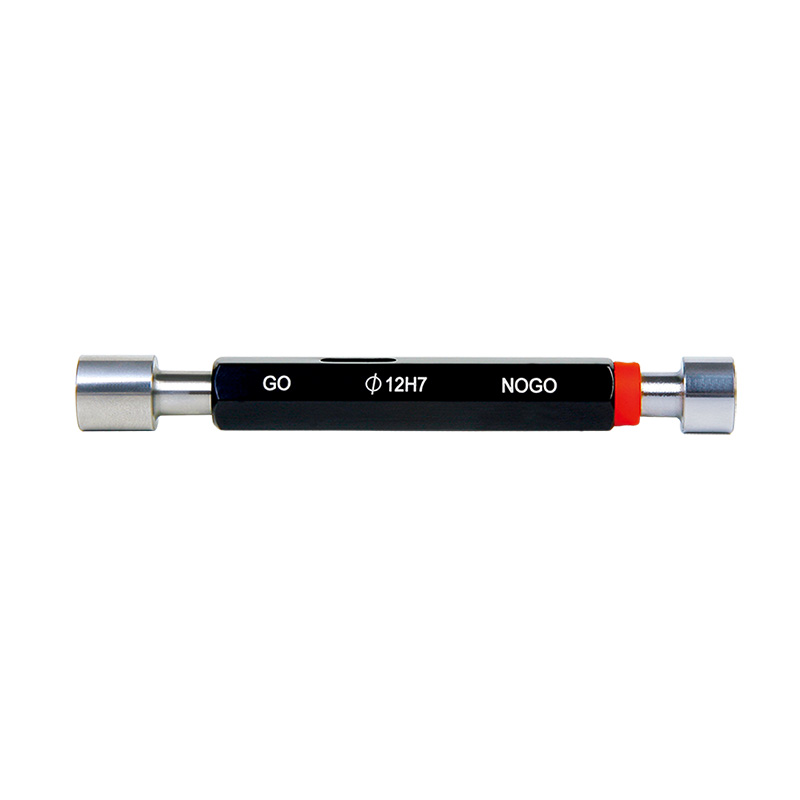

光滑极限塞规
型号: 4124
符合JJG光滑极限量规国家计量检定规程
包含通规和止规
硬度HRC60±2

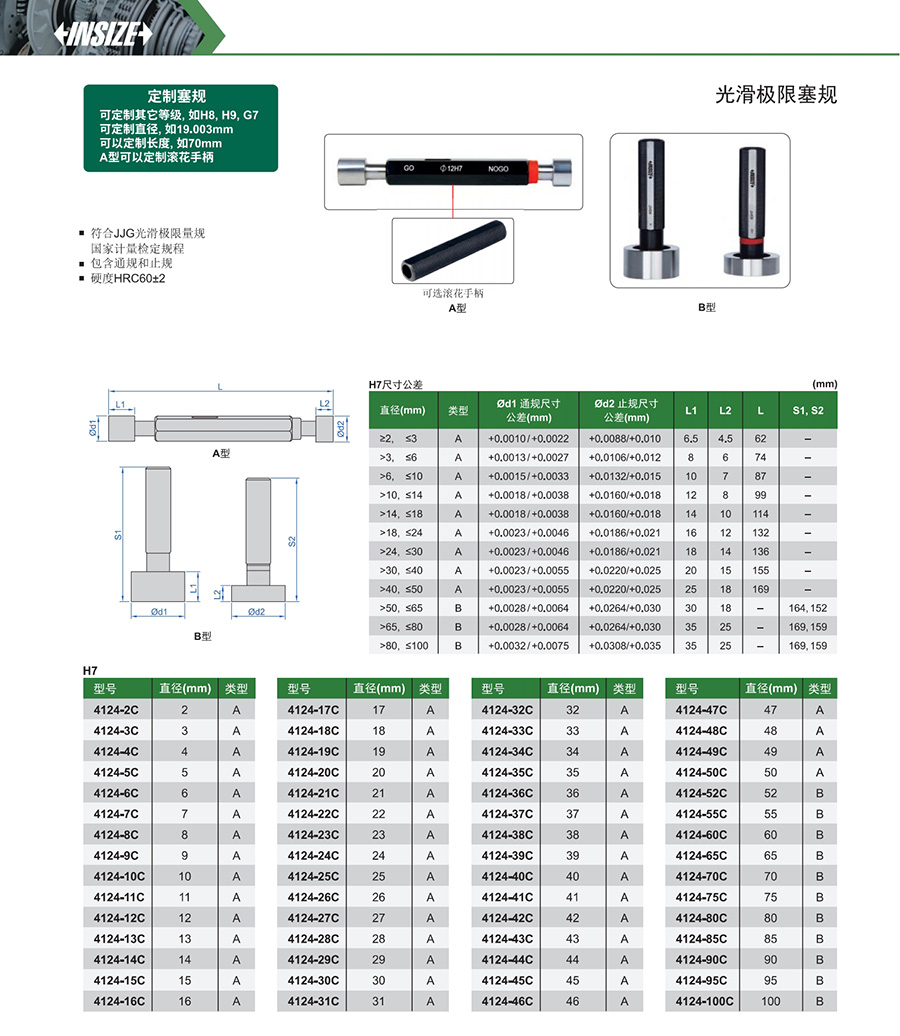

| 型号 | 直径范围 |
|---|---|
| 4124-2C | 2mm |
| 4124-3C | 3mm |
| 4124-4C | 4mm |
| 4124-5C | 5mm |
| 4124-6C | 6mm |
| 4124-7C | 7mm |
| 4124-8C | 8mm |
| 4124-9C | 9mm |
| 4124-10C | 10mm |
| 4124-11C | 11mm |
| 4124-12C | 12mm |
| 4124-13C | 13mm |
| 4124-14C | 14mm |
| 4124-15C | 15mm |
| 4124-16C | 16mm |
| 4124-17C | 17mm |
| 4124-18C | 18mm |
| 4124-19C | 19mm |
| 4124-20C | 20mm |
| 4124-21C | 21mm |
| 4124-22C | 22mm |
| 4124-23C | 23mm |
| 4124-24C | 24mm |
| 4124-25C | 25mm |
| 4124-26C | 26mm |
| 4124-27C | 27mm |
| 4124-28C | 28mm |
| 4124-29C | 29mm |
| 4124-30C | 30mm |
| 4124-31C | 31mm |
| 4124-32C | 32mm |
| 4124-33C | 33mm |
| 4124-34C | 34mm |
| 4124-35C | 35mm |
| 4124-36C | 36mm |
| 4124-37C | 37mm |
| 4124-38C | 38mm |
| 4124-39C | 39mm |
| 4124-40C | 40mm |
| 4124-41C | 41mm |
| 4124-42C | 42mm |
| 4124-43C | 43mm |
| 4124-44C | 44mm |
| 4124-45C | 45mm |
| 4124-46C | 46mm |
| 4124-47C | 47mm |
| 4124-48C | 48mm |
| 4124-49C | 49mm |
| 4124-50C | 50mm |
| 4124-52C | 52mm |
| 4124-55C | 55mm |
| 4124-60C | 60mm |
| 4124-65C | 65mm |
| 4124-70C | 70mm |
| 4124-75C | 75mm |
| 4124-80C | 80mm |
| 4124-85C | 85mm |
| 4124-90C | 90mm |
| 4124-95C | 95mm |
| 4124-100C | 100mm |
