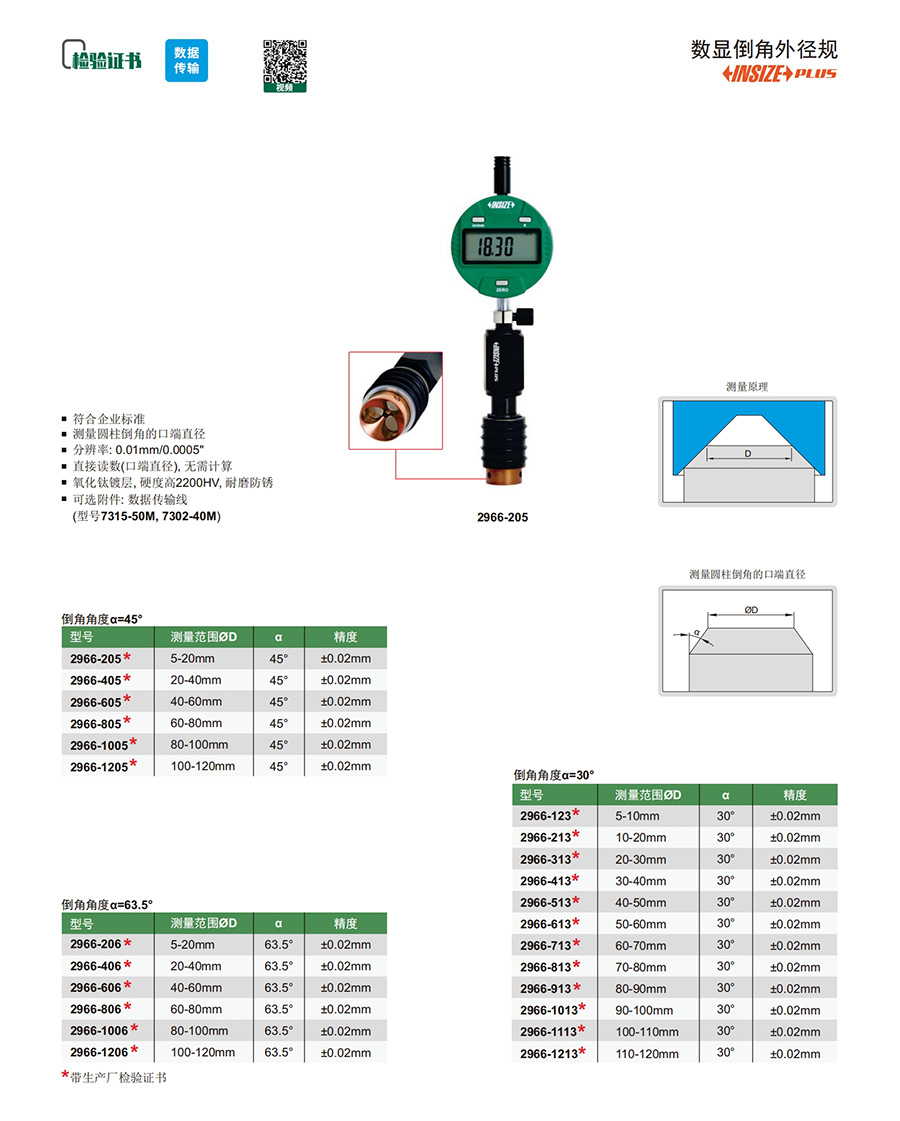

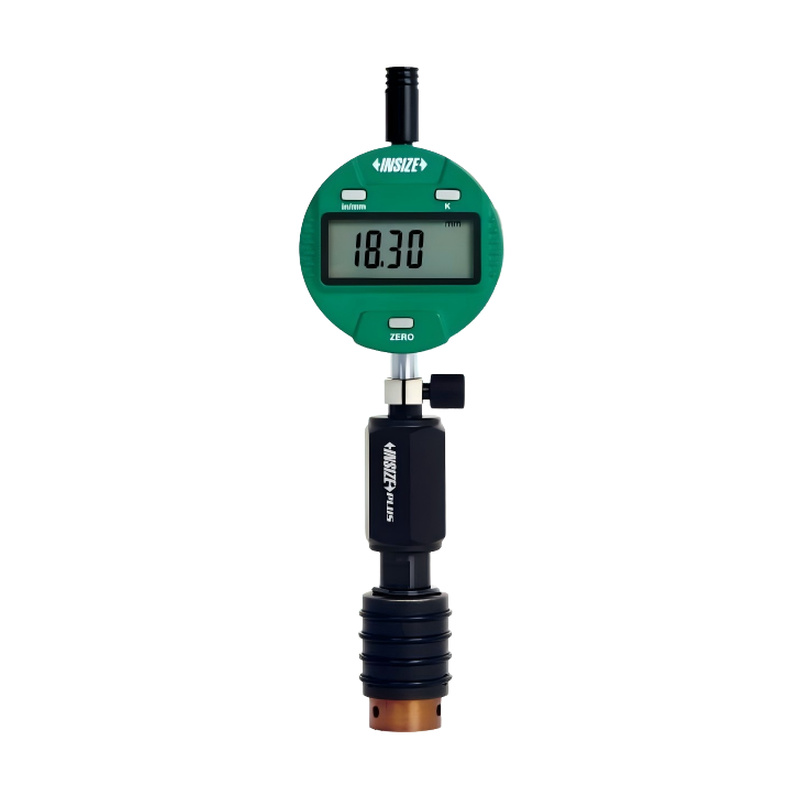

数显倒角外径规
型号: 2966
符合企业标准
测量圆柱倒角的口端直径
分辨率: 0.01mm/0.0005"
直接读数(口端直径), 无需计算
氧化钛镀层, 硬度高2200HV, 耐磨防锈
| 型号 | 测量范围 | 精度 | 分辨率 | 倒角角度 |
|---|---|---|---|---|
| 2966-205 | Ø5-20mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-405 | Ø20-40mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-605 | Ø40-60mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-805 | Ø60-80mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-1005 | Ø80-100mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-1205 | Ø100-120mm | ±0.02mm | 0.01mm/0.0005" | 45° |
| 2966-206 | Ø5-20mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-406 | Ø20-40mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-606 | Ø40-60mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-806 | Ø60-80mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-1006 | Ø80-100mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-1206 | Ø100-120mm | ±0.02mm | 0.01mm/0.0005" | 63.5° |
| 2966-123 | Ø5-10mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-213 | Ø10-20mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-313 | Ø20-30mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-413 | Ø30-40mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-513 | Ø40-50mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-613 | Ø50-60mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-713 | Ø60-70mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-813 | Ø70-80mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-913 | Ø80-90mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-1013 | Ø90-100mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-1113 | Ø100-110mm | ±0.02mm | 0.01mm/0.0005" | 30° |
| 2966-1213 | Ø110-120mm | ±0.02mm | 0.01mm/0.0005" | 30° |
