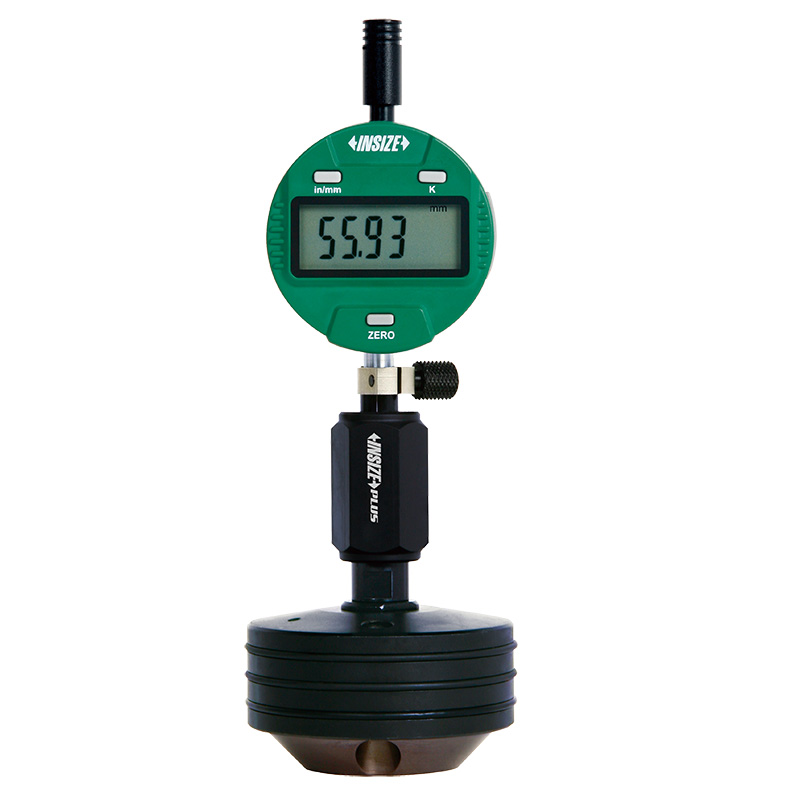

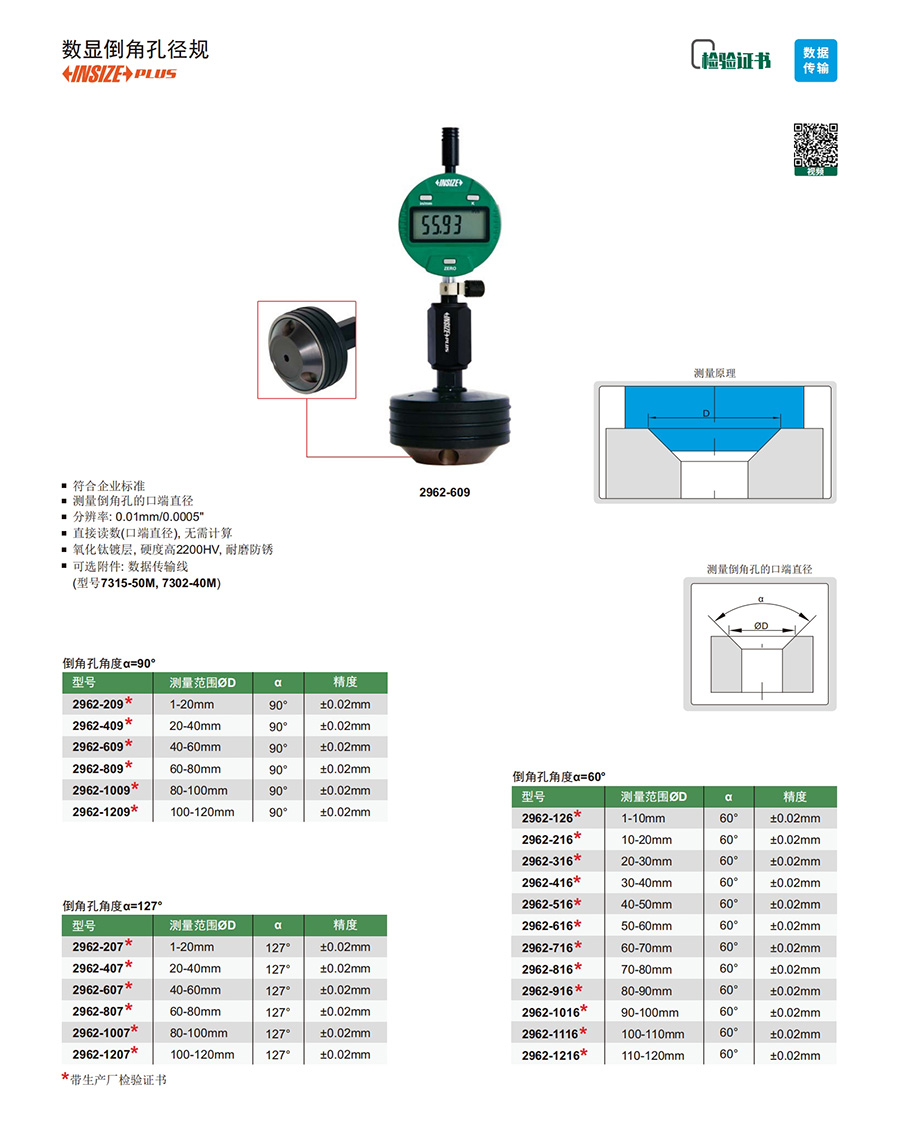

数显倒角孔径规
型号: 2962
符合企业标准
测量倒角孔的口端直径
分辨率: 0.01mm/0.0005"
直接读数(口端直径), 无需计算
氧化钛镀层, 硬度高2200HV, 耐磨防锈
| 型号 | 测量范围 | 精度 | 分辨率 | 倒角角度 |
|---|---|---|---|---|
| 2962-209 | Ø1-20mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-409 | Ø20-40mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-609 | Ø40-60mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-809 | Ø60-80mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-1009 | Ø80-100mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-1209 | Ø100-120mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2962-207 | Ø1-20mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-407 | Ø20-40mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-607 | Ø40-60mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-807 | Ø60-80mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-1007 | Ø80-100mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-1207 | Ø100-120mm | ±0.02mm | 0.01mm/0.0005" | 127° |
| 2962-126 | Ø1-10mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-216 | Ø10-20mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-316 | Ø20-30mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-416 | Ø30-40mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-516 | Ø40-50mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-616 | Ø50-60mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-716 | Ø60-70mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-816 | Ø70-80mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-916 | Ø80-90mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-1016 | Ø90-100mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-1116 | Ø100-110mm | ±0.02mm | 0.01mm/0.0005" | 60° |
| 2962-1216 | Ø110-120mm | ±0.02mm | 0.01mm/0.0005" | 60° |
