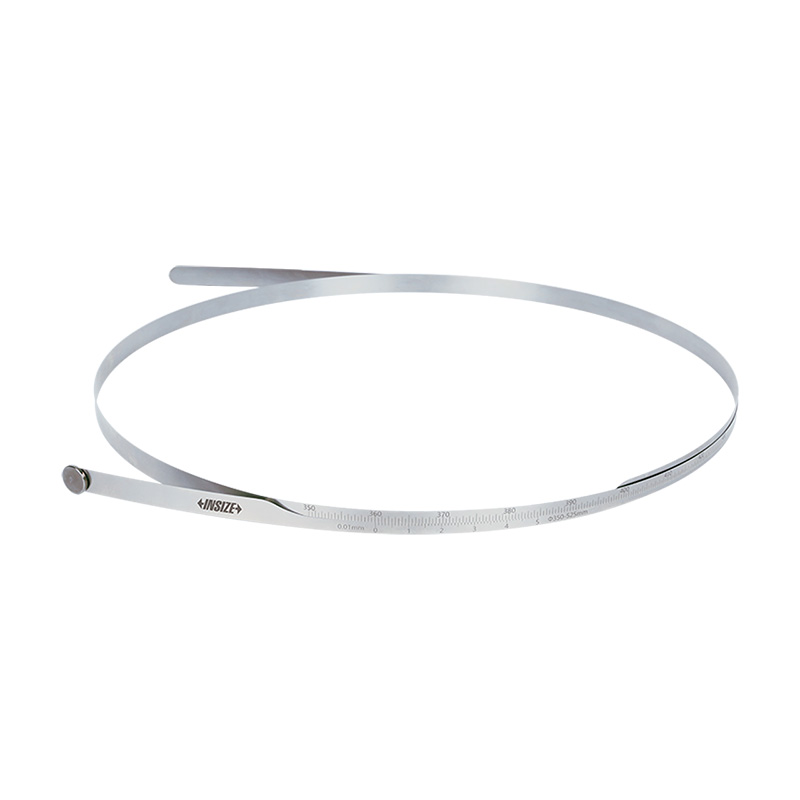

首页 / 几何测量仪器 / 量具 / 内径、外径、圆周⻓量具 / 圆周尺

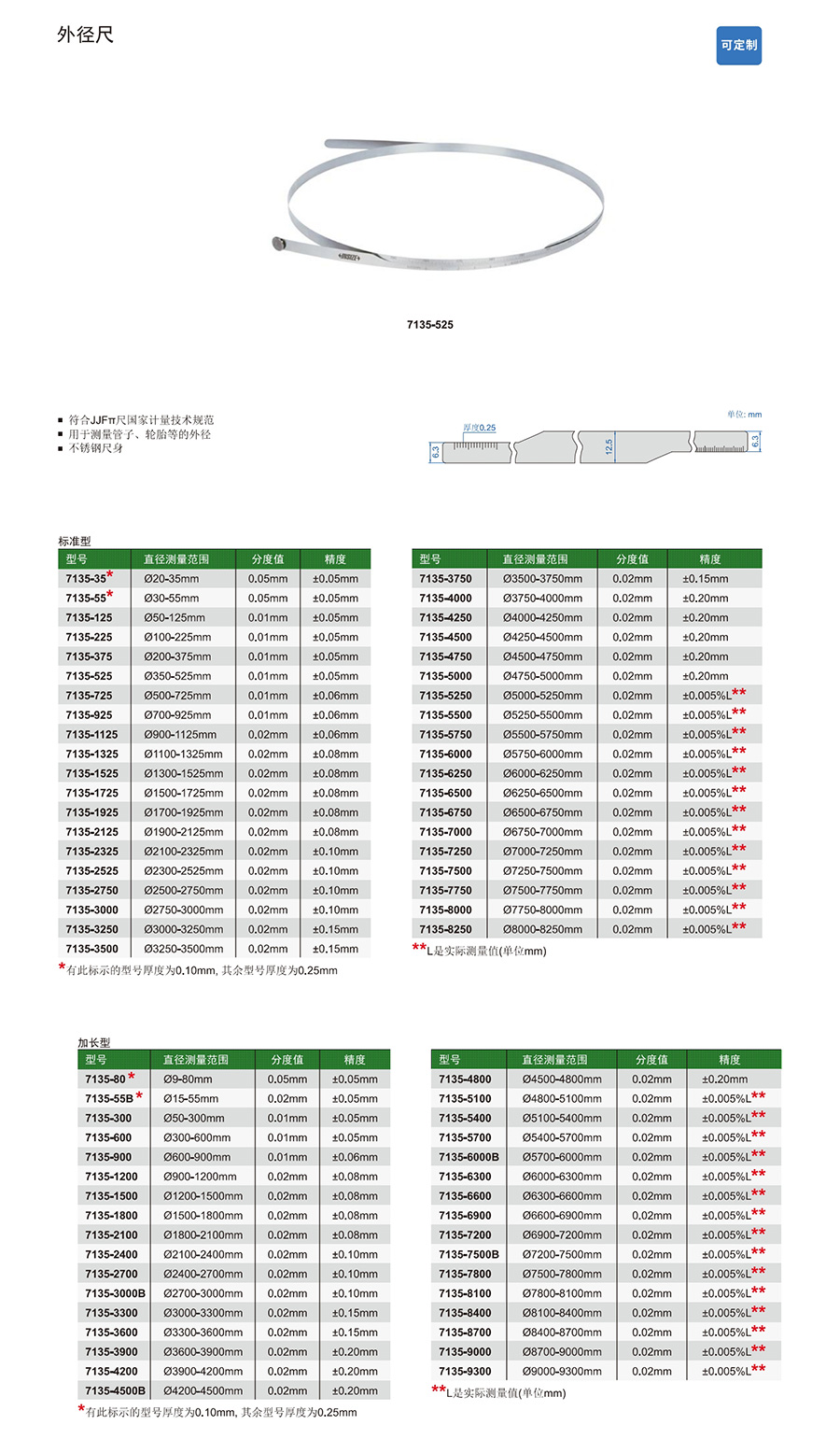

技术参数

PDF 下载
型号 精度 分度值 直径范围
7135-35 ±0.05mm 0.05mm Ø20-35mm
7135-55 ±0.05mm 0.05mm Ø30-55mm
7135-125 ±0.05mm 0.01mm Ø50-125mm
7135-225 ±0.05mm 0.01mm Ø100-225mm
7135-375 ±0.05mm 0.01mm Ø200-375mm
7135-525 ±0.05mm 0.01mm Ø350-525mm
7135-725 ±0.06mm 0.01mm Ø500-725mm
7135-925 ±0.06mm 0.01mm Ø700-925mm
7135-1125 ±0.06mm 0.02mm Ø900-1125mm
7135-1325 ±0.08mm 0.02mm Ø1100-1325mm
7135-1525 ±0.08mm 0.02mm Ø1300-1525mm
7135-1725 ±0.08mm 0.02mm Ø1500-1725mm
7135-1925 ±0.08mm 0.02mm Ø1700-1925mm
7135-2125 ±0.08mm 0.02mm Ø1900-2125mm
7135-2325 ±0.10mm 0.02mm Ø2100-2325mm
7135-2525 ±0.10mm 0.02mm Ø2300-2525mm
7135-2750 ±0.10mm 0.02mm Ø2500-2750mm
7135-3000 ±0.10mm 0.02mm Ø2750-3000mm
7135-3250 ±0.15mm 0.02mm Ø3000-3250mm
7135-3500 ±0.15mm 0.02mm Ø3250-3500mm
7135-3750 ±0.15mm 0.02mm Ø3500-3750mm
7135-4000 ±0.20mm 0.02mm Ø3750-4000mm
7135-4250 ±0.20mm 0.02mm Ø4000-4250mm
7135-4500 ±0.20mm 0.02mm Ø4250-4500mm
7135-4750 ±0.20mm 0.02mm Ø4500-4750mm
7135-5000 ±0.20mm 0.02mm Ø4750-5000mm
7135-5250 ±0.005%L 0.02mm Ø5000-5250mm
7135-5500 ±0.005%L 0.02mm Ø5250-5500mm
7135-5750 ±0.005%L 0.02mm Ø5500-5750mm
7135-6000 ±0.005%L 0.02mm Ø5750-6000mm
7135-6250 ±0.005%L 0.02mm Ø6000-6250mm
7135-6500 ±0.005%L 0.02mm Ø6250-6500mm
7135-6750 ±0.005%L 0.02mm Ø6500-6750mm
7135-7000 ±0.005%L 0.02mm Ø6750-7000mm
7135-7250 ±0.005%L 0.02mm Ø7000-7250mm
7135-7500 ±0.005%L 0.02mm Ø7250-7500mm
7135-7750 ±0.005%L 0.02mm Ø7500-7750mm
7135-8000 ±0.005%L 0.02mm Ø7750-8000mm
7135-8250 ±0.005%L 0.02mm Ø8000-8250mm
7135-80 ±0.05mm 0.05mm Ø9-80mm
7135-55B ±0.05mm 0.02mm Ø15-55mm
7135-300 ±0.05mm 0.01mm Ø50-300mm
7135-600 ±0.05mm 0.01mm Ø300-600mm
7135-900 ±0.06mm 0.01mm Ø600-900mm
7135-1200 ±0.08mm 0.02mm Ø900-1200mm
7135-1500 ±0.08mm 0.02mm Ø1200-1500mm
7135-1800 ±0.08mm 0.02mm Ø1500-1800mm
7135-2100 ±0.08mm 0.02mm Ø1800-2100mm
7135-2400 ±0.10mm 0.02mm Ø2100-2400mm
7135-2700 ±0.10mm 0.02mm Ø2400-2700mm
7135-3000B ±0.10mm 0.02mm Ø2700-3000mm
7135-3300 ±0.15mm 0.02mm Ø3000-3300mm
7135-3600 ±0.15mm 0.02mm Ø3300-3600mm
7135-3900 ±0.20mm 0.02mm Ø3600-3900mm
7135-4200 ±0.20mm 0.02mm Ø3900-4200mm
7135-4500B ±0.20mm 0.02mm Ø4200-4500mm
7135-4800 ±0.20mm 0.02mm Ø4500-4800mm
7135-5100 ±0.005%L 0.02mm Ø4800-5100mm
7135-5400 ±0.005%L 0.02mm Ø5100-5400mm
7135-5700 ±0.005%L 0.02mm Ø5400-5700mm
7135-6000B ±0.005%L 0.02mm Ø5700-6000mm
7135-6300 ±0.005%L 0.02mm Ø6000-6300mm
7135-6600 ±0.005%L 0.02mm Ø6300-6600mm
7135-6900 ±0.005%L 0.02mm Ø6600-6900mm
7135-7200 ±0.005%L 0.02mm Ø6900-7200mm
7135-7500B ±0.005%L 0.02mm Ø7200-7500mm
7135-7800 ±0.005%L 0.02mm Ø7500-7800mm
7135-8100 ±0.005%L 0.02mm Ø7800-8100mm
7135-8400 ±0.005%L 0.02mm Ø8100-8400mm
7135-8700 ±0.005%L 0.02mm Ø8400-8700mm
7135-9000 ±0.005%L 0.02mm Ø8700-9000mm
7135-9300 ±0.005%L 0.02mm Ø9000-9300mm
