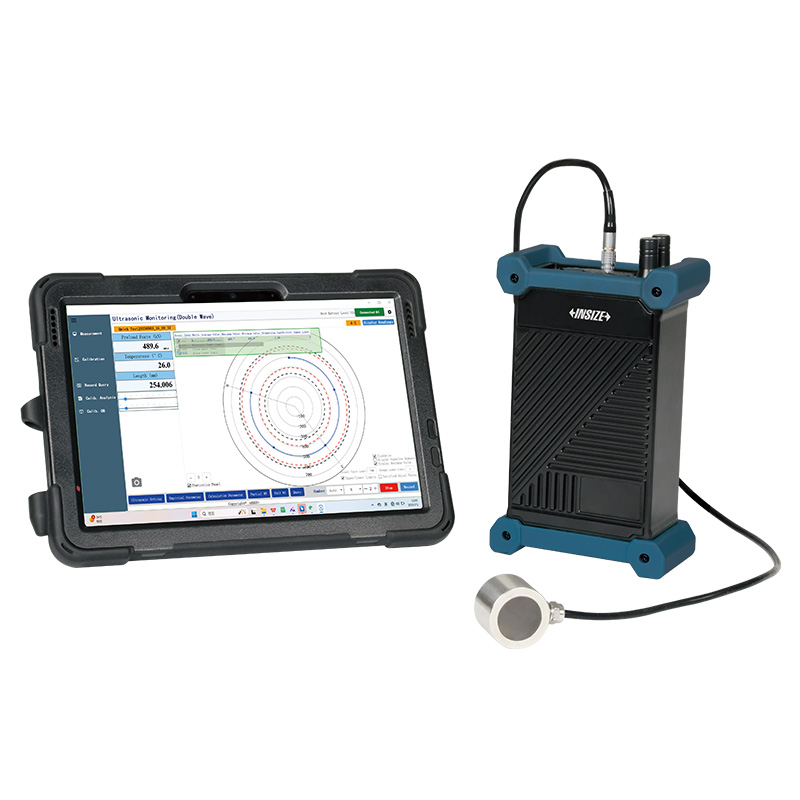

电磁超声螺栓轴力测试仪
型号: UFT-Q100-Y
主要应用于风电、石油石化、核电、氢能、重工等领域，对法兰螺栓进行质量检验、风险排查、以检代维护、防泄露检测等
符合GB/T 43232-2023紧固件轴向应力超声测量方法
横波纵波双波法测量原理, 可直接测量在役螺栓轴力绝对值, 无需测量螺栓初始长度
区别于压电超声, 无需打磨, 无需耦合, 无需贴片, 操作简单方便
输入螺栓规格, 快捷测量螺栓轴力
对多根同规格螺栓精确标定(提供寄样标定服务), 自动拟合标定系数, 精确测量螺栓轴力
带温度传感器, 自动进行温度补偿
建立不同螺栓牌号标定数据库, 随时调用
自动储存数据,一键导出螺栓数据Excel表、雷达图、统计柱状图
| 型号 | 类型 | 测试方法 |
|---|---|---|
| UFT-Q100-Y | 电磁超声轴力检测 | 双波法 |
-
FAQ
Frequently Asked Questions
Do I need to grind, apply couplant, or patch the bolt surface before measuring?
No. The UFT-Q100 uses electromagnetic ultrasonic measurement, so no grinding, couplant, or patching is required. Simply enter the bolt specifications and start measuring — each bolt takes only 4–10 seconds.
Can it measure bolts that are already in service, without knowing their original length?
Yes. The UFT-Q100 uses the dual-wave method (transverse and longitudinal waves), which enables direct measurement of the absolute axial force of in-service bolts without requiring the bolt's initial length — ideal for flange bolt inspection in wind power, oil & gas, petrochemical, nuclear power, and hydrogen energy applications.
How is measurement accuracy ensured, and can results be exported for reporting?
INSIZE offers a calibration service — send bolt samples in, and once calibration is complete, load the calibration file into the device for accurate axial force measurement (±5% after precise calibration). The device also stores calibration data for different bolt grades, automatically saves measurement results, and exports reports in Excel, radar chart, and statistical chart formats.
